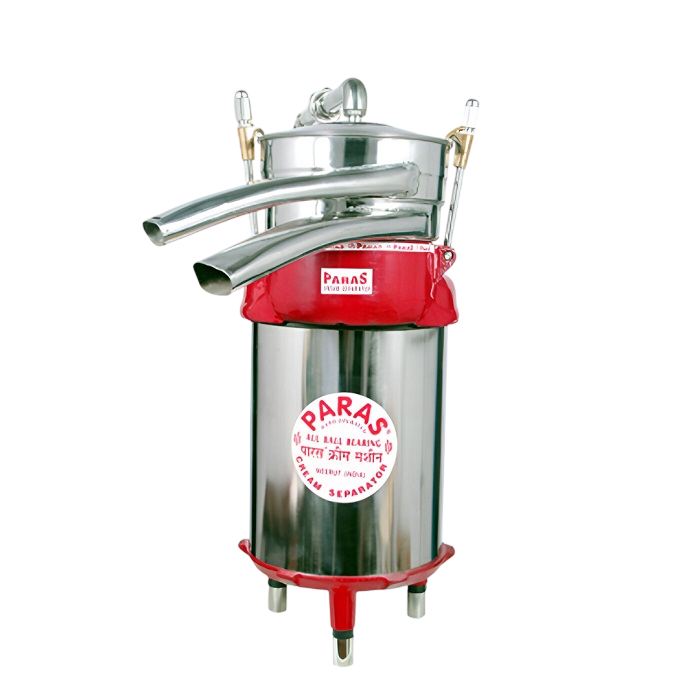

Cream Seprator Capacity Of 2000 Litre
Cream Seprator Capacity Of 2000 Litre
Hand driven all ball bearing Cream Separator machine with dynamically balanced bowl, having a separation capacity of 550 Ltrs /Hr. and milk tank capacity of 40 Liters is suitable for commercial purposes.
| GRADE | BOWL | SPOUT SET | PUMP |
|---|---|---|---|
| G4 | SS | SS | MS |
| G5 | SS | SS | SS |
Products Specifications:
| SPECIFICATION AT A GLANCE | |
|---|---|
| Capacity | 2000 Lt./Hr. |
| Bowl Speed | 8000 R.P.M. |
| Sep. Temperature | 35–40°C |
| No. Of Discs | 42 |
| Solid Removal Time | 3 Hr. |
| Electric Motor | 2 H.P. |
| Length (mm) | 485 |
| Width (mm) | 370 |
| Height (mm) | 930 |
| Packed Volume (Cubic Mtr) | 0.550 |
| Weight (Tare) | 100 Kg. |
| Weight (Packed) | 180 Kg. |
| S.NO. | PARTICULARS | DETAIL |
|---|---|---|
| 1 | UT | UPPER TANK |
| 2 | DLX | SIDE TANK (DELUX MODEL) |
| 3 | AE | ALL ELECTRIC |
| 4 | HO | HAND OPERATOR |
| 5 | DUAL MODE | HAND + ELECTRICALLY OPERATED |
| 6 | AEP | ALL ELECTRIC WITH PUMP |
| 7 | MS | MILD STEEL |
| 8 | SS | STAINLESS STEEL |
| 9 | AET | ALL ELECTRIC TABLE MODEL |

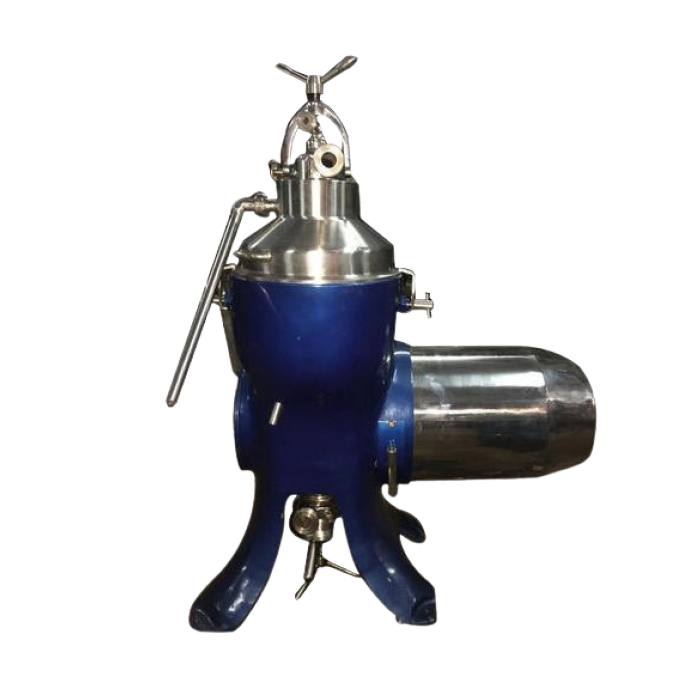

G.R. A3 ONLINE (3000 LPH)
Salient Features:
The separator is tri-purpose online with built-in-outlet pump with 5 HP 3 Phase electric motor. Bowl and all high speed revolving components are dynamically balanced. All parts in contact with milk are made of SS centrifugal clutch drive system for the smooth running of separator, Heavy cast iron base frame
| GRADE | BOWL | SPOUT SET | PUMP |
|---|---|---|---|
| G5 | SS | SS | SS |
